UPS HAT for Raspberry Pi Series Boards Support 5V Uninterruptible Power Supply Charge and Power Output at The Same Time Real Time Monitoring
4.9 (22 items)
Limited Time SaleUS$13.86 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 216990441 | Release Date | 2026/04/19 | List Price | US$9.24 | Model Number | 216990441 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

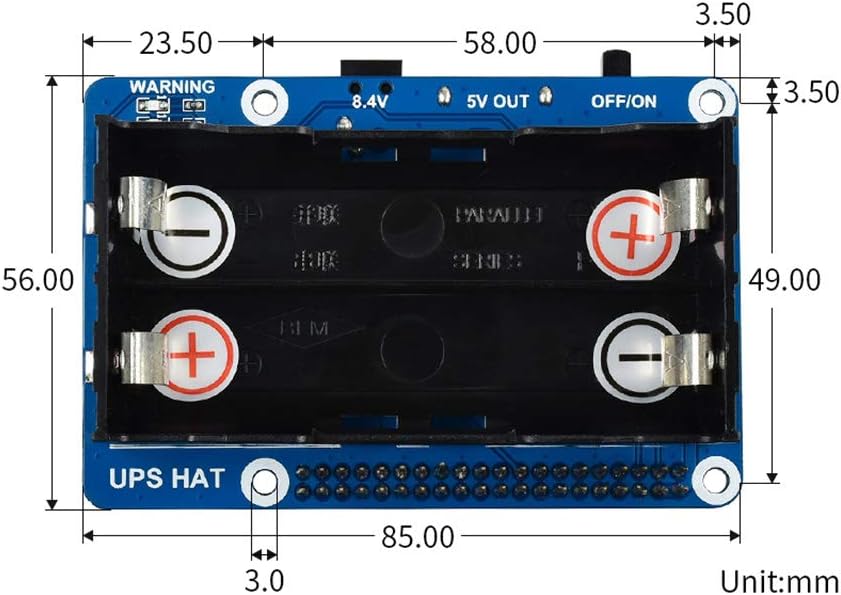

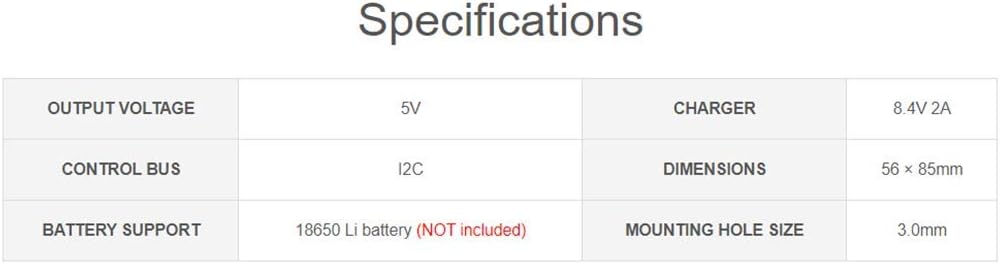

Features Standard Pi 40PIN GPIO extension header, fits Raspberry Pi series boards I2C bus communication, monitoring the batteries voltage, current, power, and remaining capacity in real time Multi battery protection circuits: over charge/discharge protection, over current protection, short circuit protection, and reverse protection, along with the equalizing charge feature, more safe and stable Onboard 5V regulator, up to 2.5A continuous output currenth 5V USB output, convenient for powering other boards Batteries warning indicators, easy to check if the battery is connected correctly Comes with development resources and manual Specifications Output voltage: 5V Control bus: I2C Battery support: 18650 Li battery (NOT included) Charger: 8.4V 2A Dimensions: 56 × 85mm Mounting hole size: 3.0mm Package content Note: The 18650 batteries are NOT included; the battery length SHOULD be less than 67mm, some batteries with protection plate in the market are NOT supported 1. UPS HAT x1 2. 8.4V battery charger x1 3. 2×20PIN female header x1 4. RPi screws pack (2pcs) x1
- Standard Pi 40PIN GPIO extension header, fits Raspberry Pi series boards

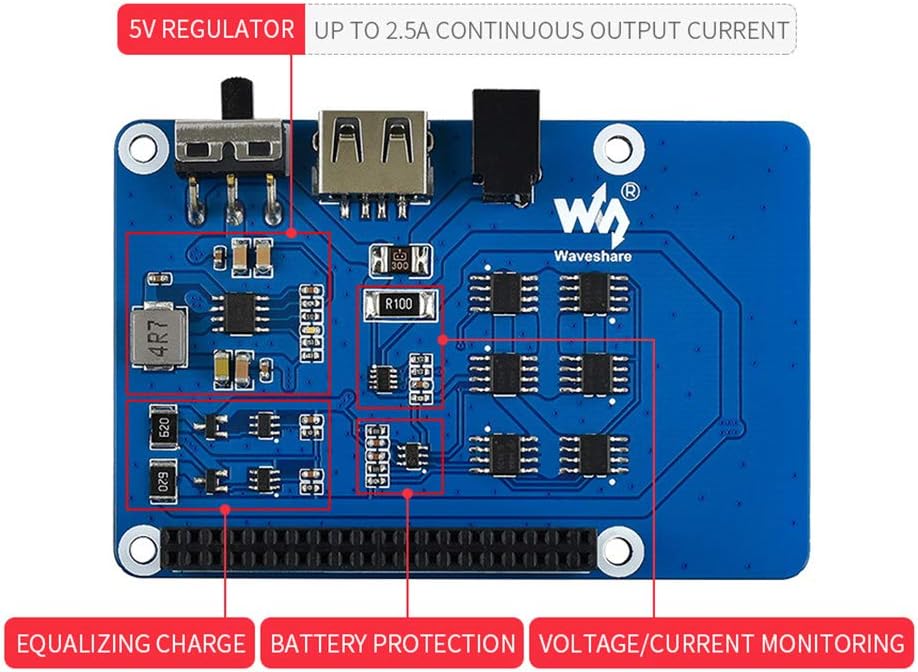

- I2C bus communication, monitoring the batteries voltage, current, power, and remaining capacity in real time; Batteries warning indicators, easy to check if the battery is connected correctly
- Multi battery protection circuits: over charge/discharge protection, over current protection, short circuit protection, and reverse protection, along with the equalizing charge feature, more safe and stable
- Onboard 5V regulator, up to 2.5A continuous output current; 5V USB output, convenient for powering other boards
| UPC | 738628504999 |
|---|---|
| Brand | Coolwell |
| Color | UPS HAT |
| Voltage | 5 Volts |
| Wattage | 12.5 watts |
| Amperage | 2.5 Amps |
| Form Factor | Compact |
| Manufacturer | Coolwell |
| Model Number | UPS HAT |
| Connector Type | USB |
| Output Voltage | 5 Volts |
| Mfr Part Number | RPI UPS HAT |
| Power Plug Type | Type A - 2 pin (North American) |
| Number of Outlets | 1 |
