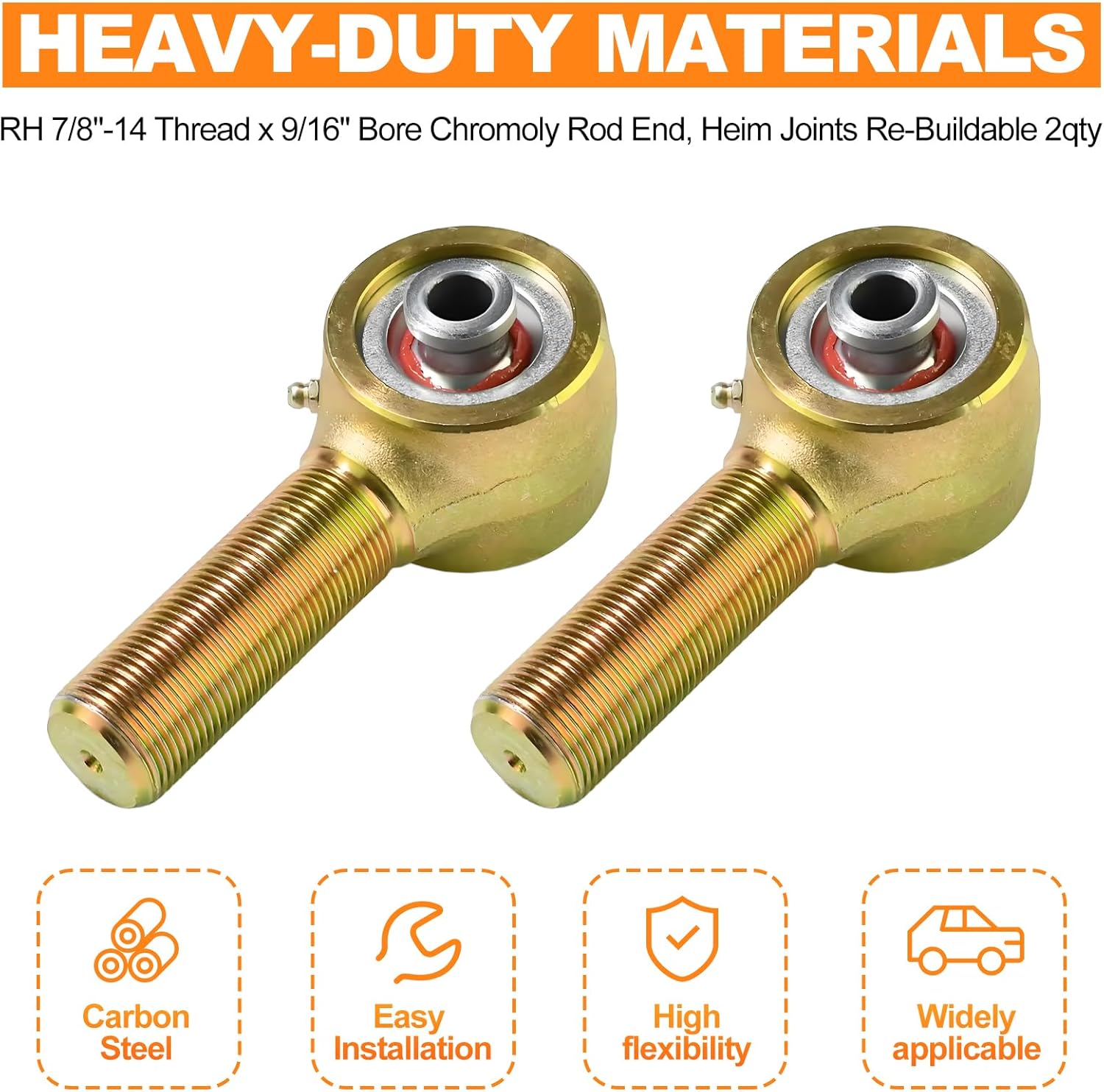

RH 7/8"-14 Thread x 9/16" Bore Chromoly Rod End Bushings,Heim Joint Rod End Bushing,Rebuildable with Built-in Grease Fitting,for Racing, Sway Bars, Suspension Links & Custom Mounts

YIFUOK RH 7/8"-14 Thread x 9/16" Bore Chromoly Rod End Bushings,High-Strength Heim Joint Rod End BushingEquipped with polyurethane bushings and built-in grease holes to ensure lubrication during use, preventing rattles, providing a smooth operating experience, and reducing the need for maintenanceVersatile Application:This bushing kit can be used for sway bar bushings and engine mounts for a wide range of vehicle modifications and flexibility to meet different engineering requirements.Rod End Specs:Thread Size: 7/8"-14Bore: 9/16" (.5625)Mounting Width:1-19/32(1.60 )Thread Length:2-19/32"(2.60 )Overall Length: 4-29/32" (4.90 )Housing Outer Dia:2-7/64"(2.10 )Bushing Material:DelrinChromoly:4130 ⚠️ Professional Installation Tip: Always use high-strength thread-locker or properly torque jam nuts on the rod ends to prevent them from loosening due to vibration. Regularly inspect for wear and play, especially after heavy use.

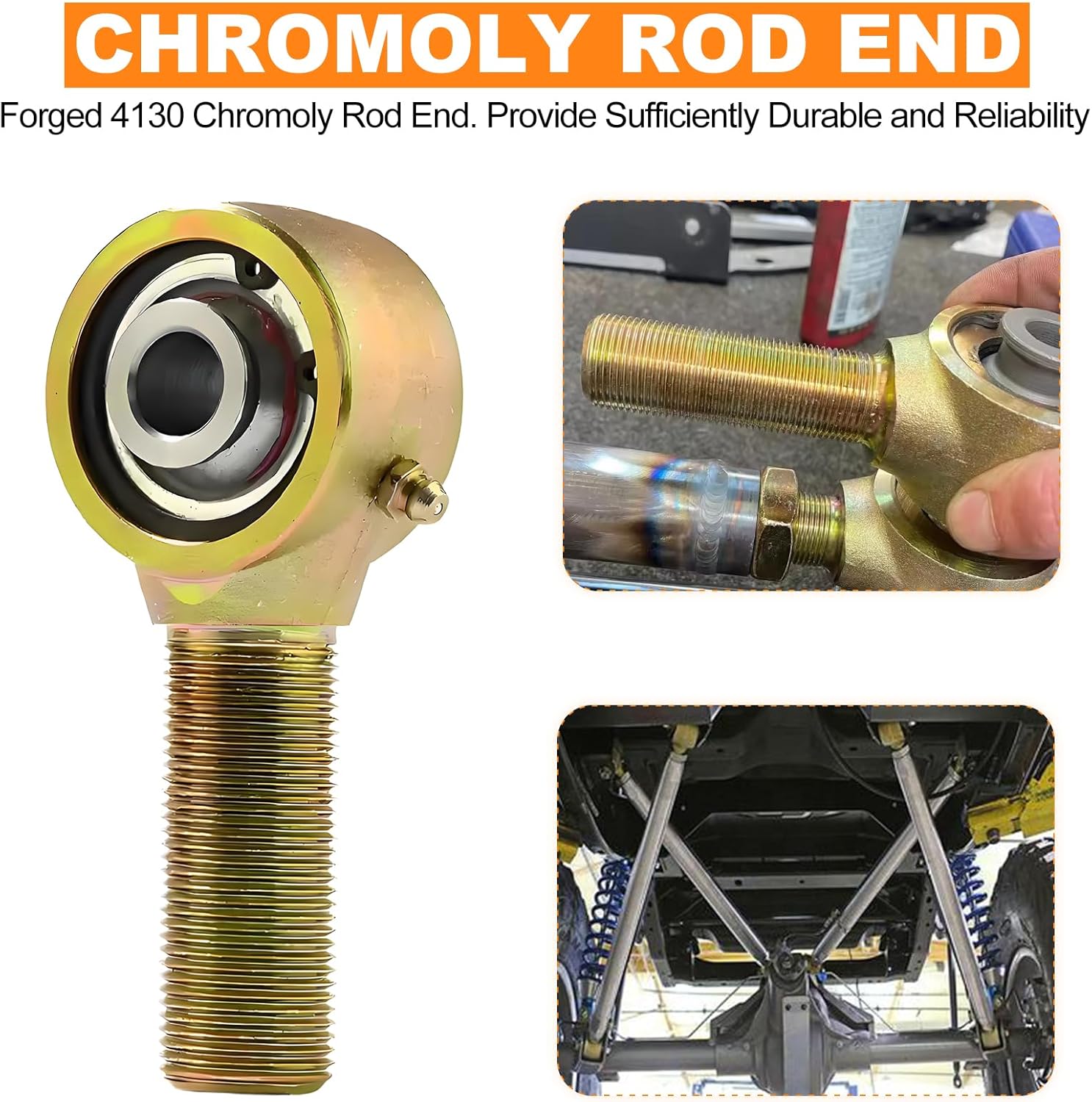

• High-Strength Chromoly Construction:Made from 4130 Chromoly Steel, offering a superior strength-to-weight ratio and excellent impact resistance.Built to withstand the extreme stresses of motorsports, high-speed applications, and rigorous off-road environments.
• Rebuildable & Serviceable Design:Maximize Lifespan & Value: Unlike sealed, disposable units, these Heim joints can be disassembled for cleaning, inspection, and rebuilding. Simply replace the bearing insert when worn to restore like-new performance.Cost-Effective Long-Term: Save money over the life of your project by not having to replace the entire assembly for minor wear.
• Built-In Grease Fitting (Zerk Fitting):Enhanced Lubrication: The integrated grease fitting allows you to easily purge contaminants and pack the joint with fresh, high-pressure grease.Reduce Wear & Friction: Regular lubrication extends service life, minimizes free play, and ensures smooth, consistent operation under load.
• Precision Right-Hand (RH) Threads:Thread Size:7/8"-14;Bore: 9/16"(.5625);Mounting Width:1-19/32(1.60 );Thread Length: 2-19/32" (2.60 );Overall Length: 4-29/32" (4.90 );Housing Outer Dia: 2-7/64"(2.10 ).Accurate Adjustment: The 7/8"-14 right-hand thread allows for fine-tuning of length and alignment in your linkage assemblies.Secure Fit: High-quality rolled threads ensure a strong, clean engagement with mating components.
• Versatile Application:Perfect for a wide range of demanding projects,Automotive: Sway bar end links, suspension push/pull rods, steering linkages, throttle linkages, transmission shifters.Racing: Custom suspension on race cars, buggies, and karts.Off-Road: Lift kits, traction bars, panhard rods, and disconnecting sway bars for 4x4s and UTVs.Industrial: Machinery linkages, actuator ends, and custom fabrication projects.
