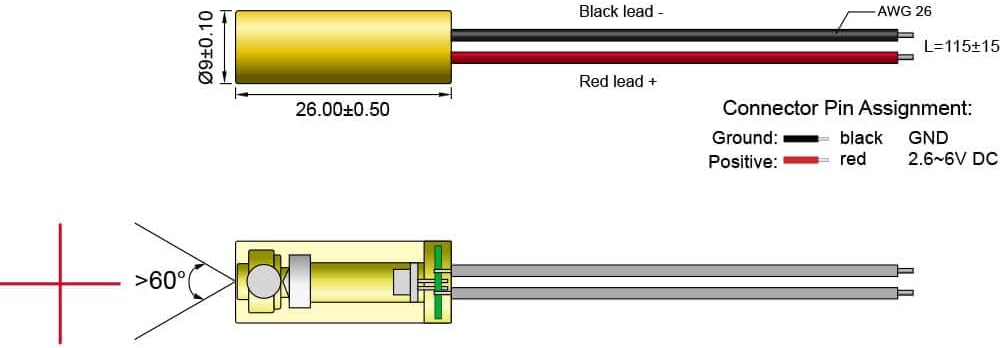

Economical Red Crosshair Laser Module, 650nm, Class 1 eye-safe, VLM-650-29 LPT - With APC Driver, D9 x L26 mm, 2.6~6 VDC Operation Voltage, for 0~1 meter working distance, Laser Head, Made in Taiwan

Although it is an economical solution for laser cross line generator applications, this module adopts industrial-grade high-performance design, which means that it can work 24 hours a day, 7 days a week (, different from other cheap laser modules on the market). Mean time to failure (MTTF) at 77°F: 10,000 hours APPLICATIONS: Red Cross-Line Laser, Line-width optimize at short distance(40cm) for consumer grade barcode reader, leveling, alignment, adjusting, positioning, measuring, targeting and sighting device. Wood processing. Metal processing. Stone processing. Textile industry. Food industry. Automotive industry. Medical science

• ECONOMICAL RED CROSSHAIR LASER MODULE: VLM-650-29 LPT uses a Red Laser Diode for large temperature operation range. It is optimized to generate a red Crosshair Laser with an Emitting Angle of More than 60°, making it ideal for cost-saving projects requiring reliable performance.
• Cost-Efficient with Reliable Performance: Built with Aspherical Plastic Lens and Plastic Wavy Lens to provide a visible Crosshair Laser. The Line-width is optimized at 40 cm, achieving 1 mm line width. It is rated for a Mean Time To Failure (MTTF) of 5000 hrs at 25°C.
• Wavelength: 645~665 nm (Red); Optical Power: Less than 2 mW, Laser Power output: Less than 0.39mW (Class 1 eye-safe); Operating Voltage: 2.6~6 VDC. As an economical solution for laser Crosshair generator applications, its Class 1 safety rating allows for safe integration into a wide range of consumer and industrial systems.
• RELIABLE UNDER DEMANDING CONDITIONS: Features a patented solid brass structure for shock resistance and heat transfer consideration. The integrated APC driver circuit enables the laser power output to be safe and constant, delivering dependable operation while maintaining overall project cost-efficiency.
• FOR MULTIPLE INDUSTRIES: Optimized as a budget-friendly solution for applications including leveling, alignment, measuring, and positioning. This module also supports in Wood processing, Metal processing, Automotive industry, and Medical or science. Suggested work distance is 0~1 meter.
• Notice: Our laser modules are NOT laser pens and are NOT intended for general commercial or consumer use like standard laser pointer. They feature NO built-in switch or battery compartment and must be operated with an external power supply or battery holder.
